متر تدفق المياه المغناطيسية الرقمية متر ، مقياس تدفق التوربينات

في أي وقت يكون هناك نقاش حول أفضل مقياس تدفق رقمي للمياه ، نوصي غالبًا بمقياس التدفق فوق الصوتي ، ومقياس التدفق الدوامي ، وعدادات تدفق التوربينات ، ومقياس التدفق الكهرومغناطيسي. جميع عدادات التدفق الرقمية هذه فعالة من حيث التكلفة ويمكن الاعتماد عليها بسبب كفاءتها. لذلك في هذه المقالة ، سأقوم بتسليط الضوء على عدادات التدفق الرقمية هذه لمساعدتك في اتخاذ قرار بشأن الشراء.

مقاييس الجريان الكهرومغناطيسية لقياسات تدفق المياه

ال مقياس تدفق المياه الكهرومغناطيسي هو جهاز لقياس التدفق يستخدم قانون فاراداي للحث الكهرومغناطيسي لقياس التدفق الحجمي للسوائل الموصلة. ويمكن بالطبع قياس تدفق الماء، باعتباره سائلاً موصلاً، باستخدام مقياس التدفق الكهرومغناطيسي.

تُعد عدادات التدفق الكهرومغناطيسية ضرورية للغاية في مراقبة نظام التحكم في محطات معالجة المياه المنازل وعملية تحكم صناعية أخرى
في هذه الحالة، تُعدّ الطريقة الكهرومغناطيسية مناسبة لقياس تدفق السوائل لأنها لا تُعيق تدفق الماء المراد قياسه. تقيس هذه الطريقة التدفق بغض النظر عن درجة حرارة السائل أو لزوجته أو ضغطه. ولذلك، تعرض جميع مقاييس التدفق المغناطيسية من نوع SHD التدفق الكلي والتدفق اللحظي، وهما المعلمتان الرئيسيتان اللتان يمكن ضبطهما في الشاشة.

مميزات مقياس تدفق المياه الكهرومغناطيسي

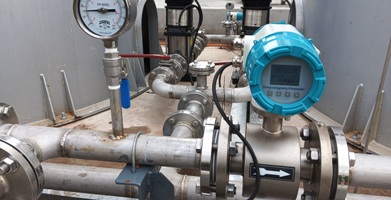

مقاييس التدفق الكهرومغناطيسية لتطبيقات قياس تدفق المياه

مقياس تدفق المياه الكهرومغناطيسي

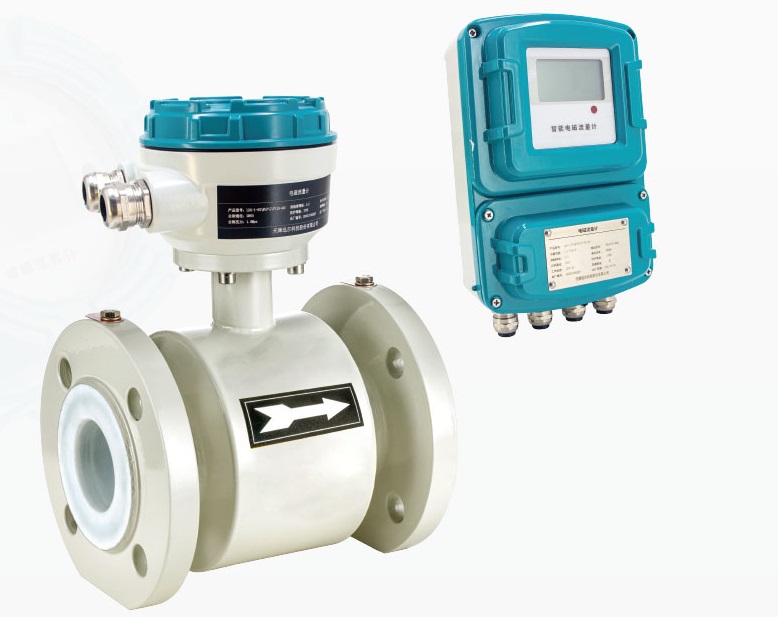

عداد تدفق المياه بشاشة عرض عن بعد

قابل للتطبيق على نطاق واسع: مياه الصنبور، المياه المنزلية، المياه الصناعية ، المياه المنتجة ، الماء المالح ، مياه البحر ، مياه الصرف مياه الصرف الصحي الري ، مياه الصرف الصحي ، ماء النار، الطين، اللب، إلخ.

مقاييس تدفق التوربينات لقياس تدفق المياه

ميزات
فيما يلي ميزات مقياس تدفق التوربين .
-إنه مقياس تدفق رقمي له خرج من 4-20 مللي أمبير وقادر على الاتصال RS485.
- يمكنه إظهار معلومات السوائل لأنه يحتوي على شاشة إلكترونية.
- يحتوي على مصدر طاقة 24 فولت تيار مستمر أو خيار لطاقة البطارية.
-يمكنه التعامل مع نطاق درجة حرارة قصوى 150 درجة مئوية.
-إنه مقياس تدفق ميسور التكلفة تم تصميمه كمقياس نبض بسيط.
- المعلمات مثل مقياس التدفق المحدد ، ووحدات التدفق المحددة ، ومسح التدفق الكلي مرئيًا في الشاشة الإلكترونية.
يمكن أن تكون أجهزة قياس التدفق التوربينية خيارًا رائعًا لأنها قابلة للاستخدام في مجموعة واسعة من التطبيقات ، ومناسبة للسوائل والغازات ، ومن السهل إعدادها وتشغيلها ، كما أنها اقتصادية للشراء وهي دقيقة ودقيقة للغاية.

مقياس التدفق الدوامي لأجهزة قياس المياه

خاتمة

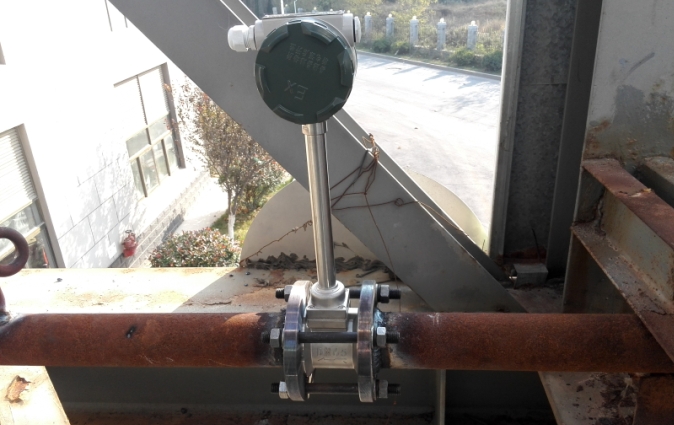

Vortex flow meter is measuring water flow

-It has a digital display that can show information on instant water flow, total flow.
-It is a stainless steel flow meter for water flow measurement
-It can handle a maximum temperature range of 350C, hence can be used as high temperature water flow meter, such as chilled water, boiler water flow meter, condensate water flow meter.
-There is various process connection such as tri-clamp for sanitary and hygienic industry, flange and wafer.
-Digital flow meter has an option of HART and RS485 communication for enhanced system integration.
-Vortex water flow meter has a 24 DC power supply or battery power supply.
-It is also a 2-wire electronic water flow meter.
-The vortex flow meter is also ideal for its long term accuracy. Maintenance is not much required because there are no moving parts. Its temperature range is also impressive hence being reliable. Additionally, the installation cost is also cheaper.

Digital Rotameters for water flow measurement

How digital water rotameter flow meter works?

The operating principle of a rotameter involves a float that moves up and down within a vertically tapered tube in response to changes in water flow. As the water flow rate varies, the float adjusts the flow area, allowing for the measurement of volumetric water flow, hence the name "variable area flow meter." While the float can serve as a simple flow indicator for measuring water flow, Silver Automation Instruments has advanced it into an electronic rotor flow meter equipped with transmitter. This electronic rotameter head not only displays the water flow rate but also the water total flow. Additionally, the rotameter transmitter can output a 4-20 mA signal, with options for RS485 or HART communication.

Advantages to use digital variable area flow meter for water flow measurement

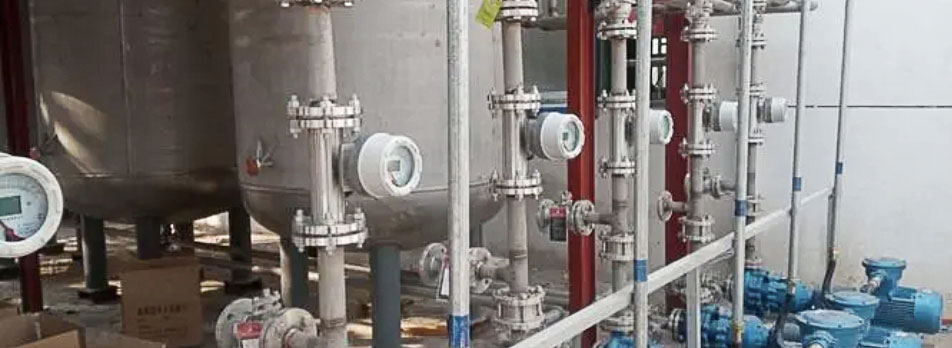

Digital rotameter for water

-Metal tube rotor flowmeter measures water flow, which is more durable than glass tube rotameter.
-Electronic rotameter flowmeter can have analog output, and can also output upper and lower limit alarm signals for various process control and remote transmission.
-There are options for explosion-proof water flowmeter and intrinsic safety water flowmeter.
-Electronic variable area flowmeter is generally suitable for low water flow measurement.
-There are also heat preservation and jacket flowmeter option for water.
-Variable area water flow sensor size ranges from 1/2" to 8".
-It can be made into vertical water flow meter, also horizontal water flow meter.
-The structure is simple and basically no maintenance is required.
-A variety of process connection options for rotameter water flow meter device, such as clamp connection, threaded connection, flange connection, etc.

Metal Tube Rotameters for different water applications

Metal tube rotor flowmeters are suitable for measuring clean, low viscosity, particulate-free water, such as:
Tap water, softening water, deionizing water, pure water, distilled water, condensing water, alum water, cooling circulating water, etc.
Water flow is required to be stable, transparent or slightly turbid, but without suspension, because its working principle depends on the float lift and drop, impurities will block the float or affect accuracy.
Not applicable: wastewater, sludge, water containing iron rust or fiber, high viscosity water (such as glue), and water that is easy to crystallize or scale (which may cause clogging)

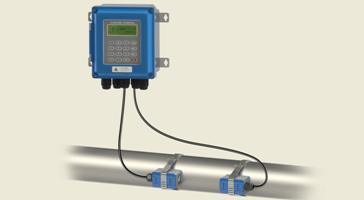

Ultrasonic water flow meter

Principle of ultrasonic water flowmeter: When sound waves propagate in the water, the speed of sound wave propagation increases in the downstream direction and decreases in the upstream direction. The same propagation distance has different propagation times. The difference in travel time over the same distance is used to calculate the water flow rate. This method is known as a transit-time ultrasonic flow meter.

Features of ultrasonic water flow meter

1. The non-contact ultrasonic water flow meter features a clamped on transducers that are mounted on the surface of the pipe, eliminating the need to stop the water flow or cut the pipe during installation.
2. There are both fixed wall-mounted mounted ultrasonic water flow meter and portable handheld ultrasonic water flow meters.
3. The non-intrusive ultrasonic water meter has no internal components that obstruct the flow, resulting in zero pressure loss.
4. Transit-time ultrasonic water meters are typically used for measuring clean water in unlined pipes. For measuring sewage water flow, a Doppler ultrasonic flow meter is recommended.
5. Ultrasonic water flow meters are highly cost-effective, with no need for additional pipeline modifications during installation.
6. In China, ultrasonic flow meters are not suitable for measuring water flow in pipelines with a diameter smaller than DN32. For pipelines below DN32, a turbine water flow meter or electromagnetic water flow meter is recommended.

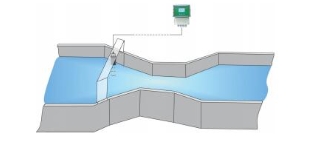

Open channel water flow meter

How open channel water flow meter works?

The open channel flow meter is designed to measure natural flow in partially filled pipes or open channels with a free surface. The open channel flow meters offered by Silver Automation Instruments are typically used in conjunction with Parshall flumes. The principle of the ultrasonic open channel flow meter involves narrowing a section of the channel's cross-sectional area, causing the liquid level at the narrowed section to be lower than the upstream liquid level. The flow rate is determined by measuring the difference in liquid levels.

Applications of open channel water flow meter

Open channel flow meters are suitable for use in urban water supply diversion channels, cooling water diversion and drainage channels in thermal power plants, sewage treatment inflow and discharge channels, industrial and mining wastewater discharge, as well as in water conservancy projects and agricultural irrigation channels.

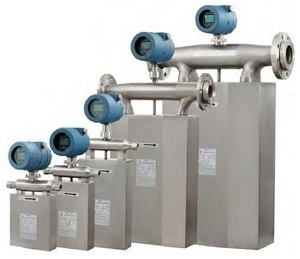

Digital Mass water flow meter

The Coriolis mass flowmeter is currently the most accurate water mass flowmeter in the world. Principle of Coriolis mass flowmeter for water: The fluid is in a rotating system while moving in a straight line, producing the Coriolis principle which is proportional to the mass flow rate.

Features of digital mass water flow meter

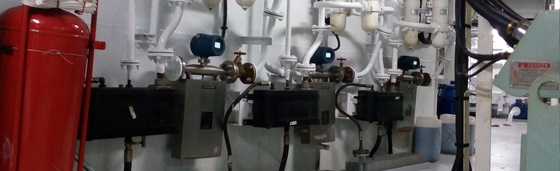

water mass flow meter

1. Directly measure the mass flow rate of water, rather than the mass flow rate converted by the volume flow rate and density relationship.
2. Measure the flow rate of various waters, ultrapure water, RO water, in short, any kind of water can be measured. On the contrary, electromagnetic cannot measure non-conductive water, and vortex water flow meter and turbine water flow meter cannot measure water containing impurities.
3. The vibration amplitude of the measuring tube is small, there are no obstructions and moving parts in the pipeline, and there is no pressure loss water flowmeter.
4. Not only measure the mass flow rate of water, but also measure the temperature and pressure of water, multi-parameter digital water flowmeter.
5. The highest precision water flowmeter, the accuracy can reach 0.1%. 6. Our company has micro water flowmeters and Coriolis mass flow controllers for water.

Coriolis mass flow controllers for water

6. The digital mass water flow meter features a digital display and supports various communication protocols, including Profibus PA, HART, and MODBUS RTU. It offers flow or density output options for 4-20 mA and frequency signals. The mass flow meter can be powered by either a 24V DC or 220V AC supply.

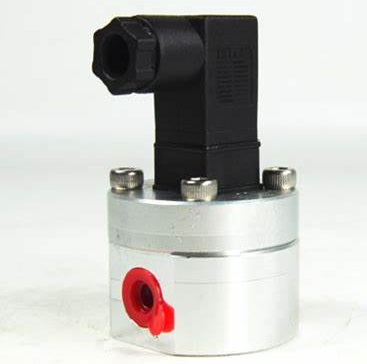

Digital Micro water flow meter

Our company offers advanced digital type micro flow meters for precise water measurement, utilizing cutting-edge technology. We specialize in providing micro oval gear flow meters, micro differential pressure flow meters, and micro Coriolis mass flow meters. Each of these devices represents a high level of technological sophistication and accuracy in flow measurement. Below is a brief overview of our offerings.

Conclusion

Digital flow meters are very reliable best on the functionality. It is perfectly used for water measurements and monitoring. All you need to do is to familiarise yourself with digital flow water meter types, prices as well as quality to enable you to identify which is quite stable and reliable so that when you purchase one you will be sure to have the best digital flow meter for water measurements. Welcome to contact us Silver Automation Instruments and provide us your digital water flow measurement applications.
