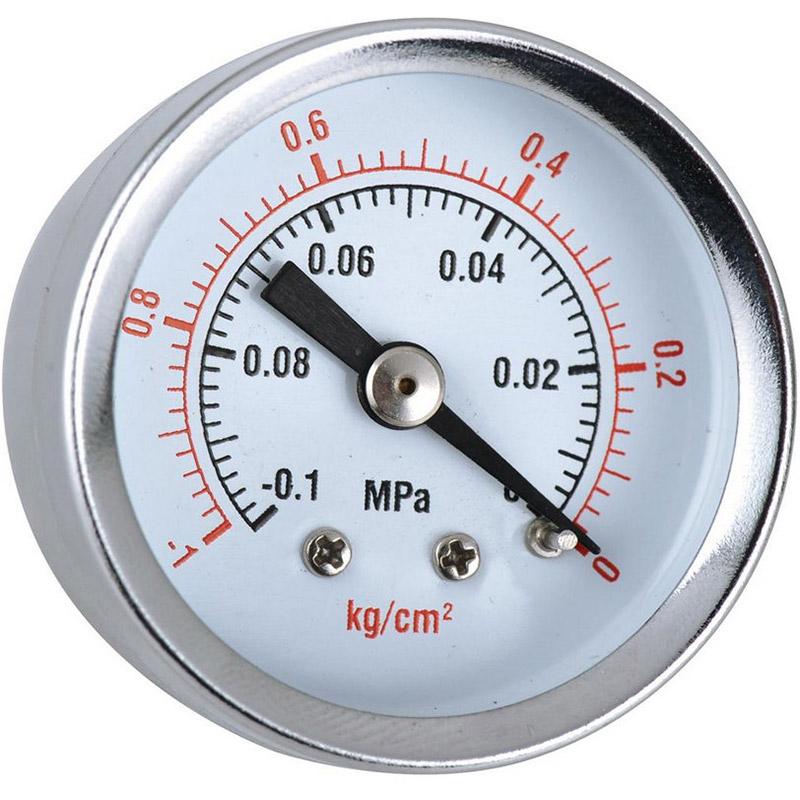

Part

Material

Y series Standard Material

YN Series stainless steel material

Connector

Brass

Stainless steel

Bourdon tube

Brass

Stainless steel

Case

Metal Plating

Stainless steel

Item

Code

Description

Product

Y

Pressure Gauge

Function

Blank

Standard Material

N

Oil filled Pressure Gauge

FN

Stainless steel material and Oil filled Pressure Gauge

Diameter

60

Φ60mm

100

Φ100mm

150

Φ150mm

Mounting

AO

Bottom mounting

AT

Bottom mounting withfront flange

AH

Bottom mounting with back flange

ZO

Back mounting

ZT

Back mounting with front flange

BO

Lower back mounting

BT

Lower back mounting with front flange

ZK

Back U clamp mounting

BK

Lower back ,U clamp mounting

S

Others

Connection

C1

Thread M14×1.5

C2

Thread M20×1.5

C3

Thread 1/4NPT

C4

Thread 1/2NPT

Cx

Others

Measuring Range

M***

Refer to range table

Code

Ranges

M500

-0.1~0MPa

M510

-0.1~0.06MPa

M520

-0.1~0.15MPa

M530

-0.1~0.3MPa

M540

-0.1~0.5MPa

M550

-0.1~0.9MPa

M560

-0.1~1.5MPa

M570

-0.1~2.4MPa

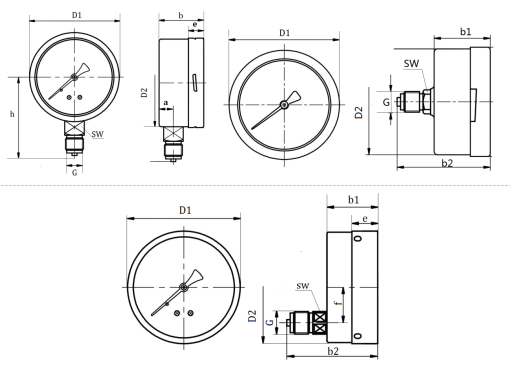

Size

a

b

b1

b2

D1

D2

e

f

G

h

SW

60

9

31

31

58

68

61

6

-

M14*1.5

58

14

100

17

50

49

97

101

99

17

30

M20*1.5

90

22

150

17

50

50

97

151

149

17

30

M20*1.5

116

22
